Project Description

INTENSA LRM0110

  • Anodized Aluminium Casing
  • Different Face Shapes and Finishes

  • 1 High-Power LED or LED array Design
  • Warm White, Daylight White, Blue, Green, Red or Multi-Color Lighting
  • Reflecor with Holographic Diffuser
  • Microprocessor Control
  • Digital Dimming
  • DMX512 Network Control
  • Polarity Protection

  • Transient Protection

  • Thermal Protection
  • Wide Range Power Supply
  • Low Power Consumption

  • Simple Installation

The INTENSA series of compact LED lights with electronic driver built-in waterproof anodized aluminium casing is designed by using of 1, 2, 3 or 6 high-power LEDs with built-in microprocessor which enables network connections and remote control with digital dimming.

The multi-color RGBW compact LED lights with built-in driver are designed to offer the best illumination quality of different white lighting (CRI 97) and microprocessor-controlled changing of white and all other colors of lighting manually or automatically through the complete rainbow spectrum.

Due to wide range of prestige massive face shapes made of aluminium or stainless steel the INTENSA is suitable to fit on luxury designed interiors and exteriors. The most advanced LED technology enables extremely low power consumption and very long lifetime with high-performance lighting.

Model Description
LRM0110 1 High-Power LED or LED Array
Control Description
I Internal dimming control, 2-wire system
E External dimming control, 3-wire system
Color of lighting Description
W Warm White
D Daylight White
R Red
G Green
B Blue
M RGB multi-color
Front shape Description
MAW Round, modern, painted white aluminium
MAB Round, modern, painted beige aluminium

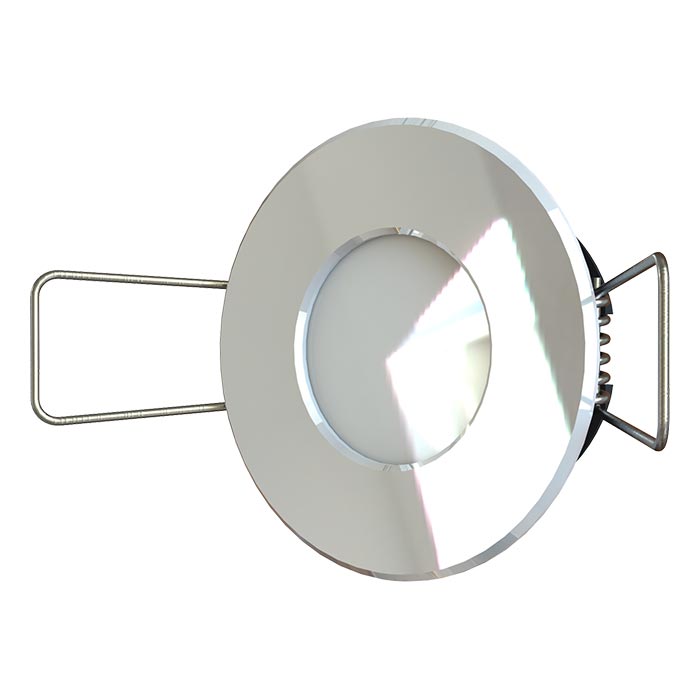

MSP Round, modern, polished stainless steel

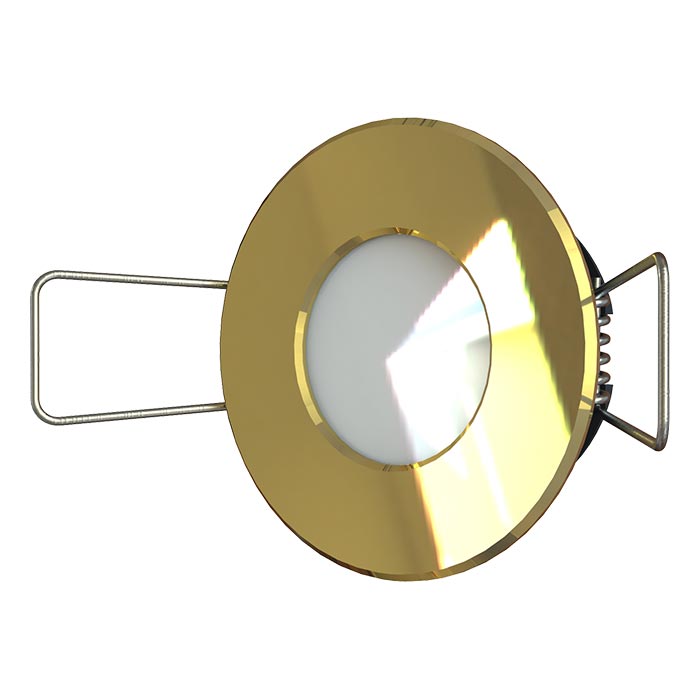

MSG Round, modern, polished gold (PVD) stainless steel
MSS Round, modern, satin stainless steel

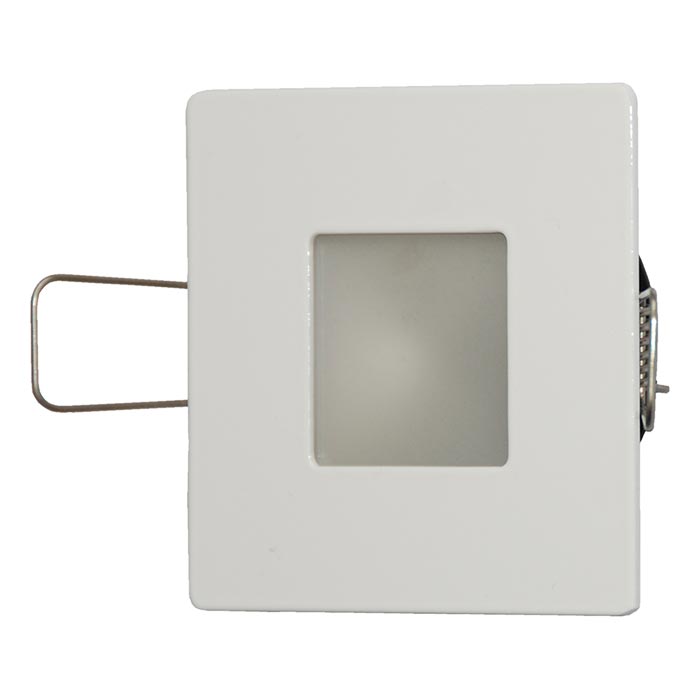

QMAW Square, modern, painted white aluminium
QMAB Square, modern, painted beige aluminium
QMSP Square, modern, polished stainless steel
QMSG Square, modern, polished gold (PVD) stainless steel
QMSS Square, modern, satin stainless steel

Technical Specifications

Power supply 12 – 24 Vdc, max. 130 mA
Lens angle 130°
Optical window High grade polycarbonate glass
Luminous flux max. 130 lm
White color temperature 4500K (daylight) or 3000K (warm)
Casing Black anodized aluminium
Dimensions max. Ф58mm x 25mm
Mounting hole Ф48mm x 24mm
Weight Aluminium front shape 70g
Stainless steel front shape 100g
