Project Description

INTENSA LRM0115 – LRM0220 – LRM0620

  • Anodized Aluminium Casing
  • 1, 2 or 6 High-Power LEDs

  • Different Face Shapes

  • Warm White, Daylight White, Blue, Green, Red or Multi-Color Lighting
  • Reflecor with Holographic Diffuser
  • Microprocessor Control

  • Digital Dimming
  • DMX512 Network Control
  • Polarity Protection

  • Transient Protection

  • Thermal Protection
  • Wide Range Power Supply
  • Low Power Consumption

  • Simple Installation

The INTENSA series of compact LED lights with electronic driver built-in waterproof anodized aluminium casing is designed by using of 1, 2, 3 or 6 high-power LEDs with built-in microprocessor which enables network connections and remote control with digital dimming.

The multi-color RGBW compact LED lights with built-in driver are designed to offer the best illumination quality of different white lighting (CRI 97) and microprocessor-controlled changing of white and all other colors of lighting manually or automatically through the complete rainbow spectrum.

Due to wide range of prestige massive face shapes made of aluminium or stainless steel the INTENSA is suitable to fit on luxury designed interiors and exteriors. The most advanced LED technology enables extremely low power consumption and very long lifetime with high-performance lighting.

Model Description
LRM0115 1 High-Power LED
LRM0220 2 High-Power LEDs
LRM0620 6 High-Power LEDs
Control Description
I Internal dimming control, 2-wire system
E External dimming control, 3-wire system
Front shape Description

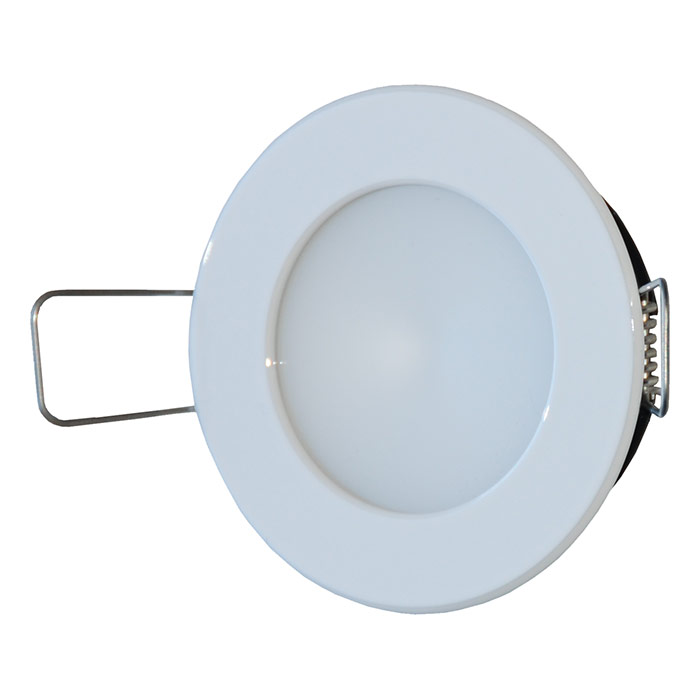

MAW Round, modern, painted white aluminium

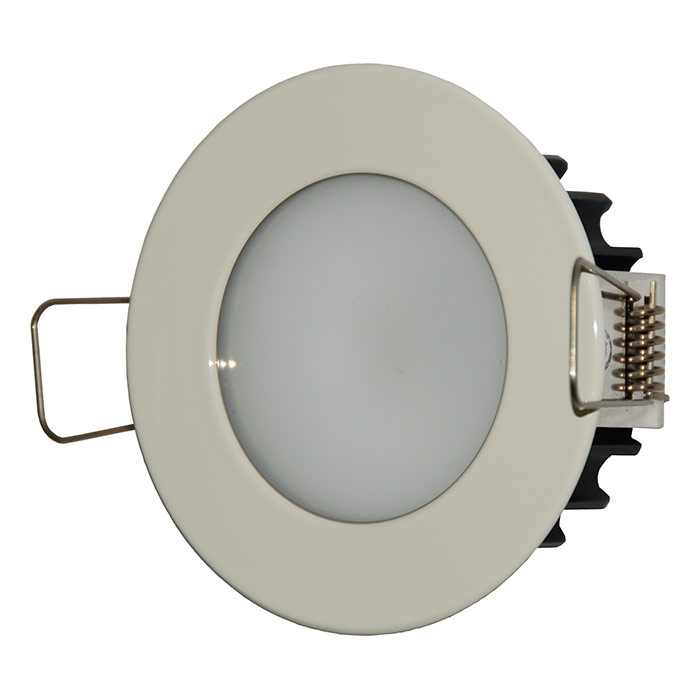

MAB Round, modern, painted beige aluminium

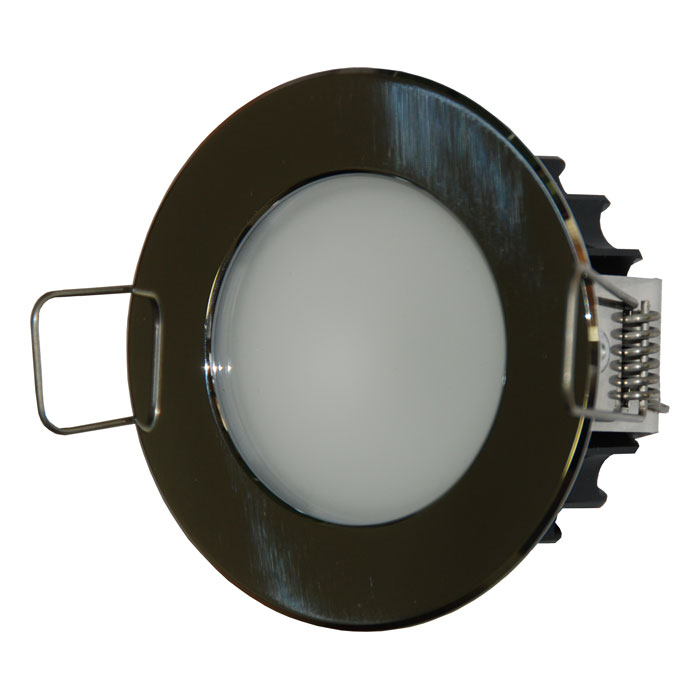

MSP Round, modern, polished stainless steel

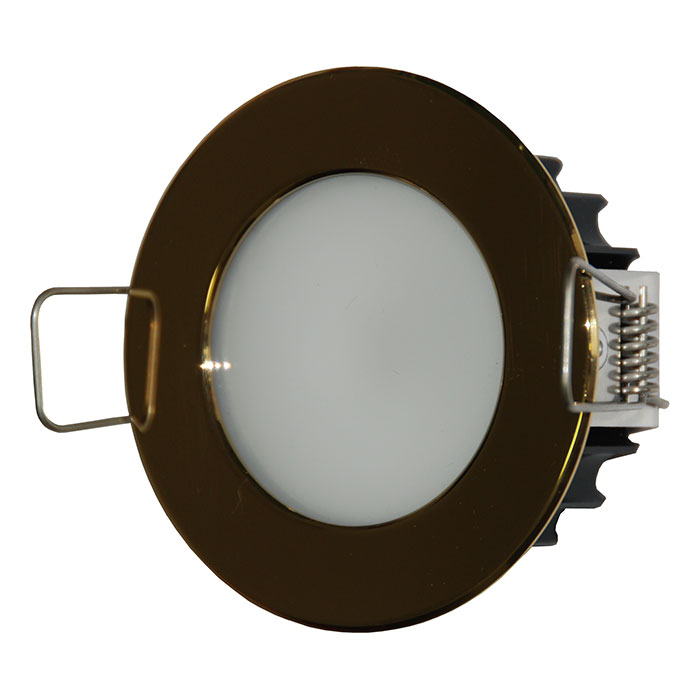

MSG Round, modern, polished gold (PVD) stainless steel

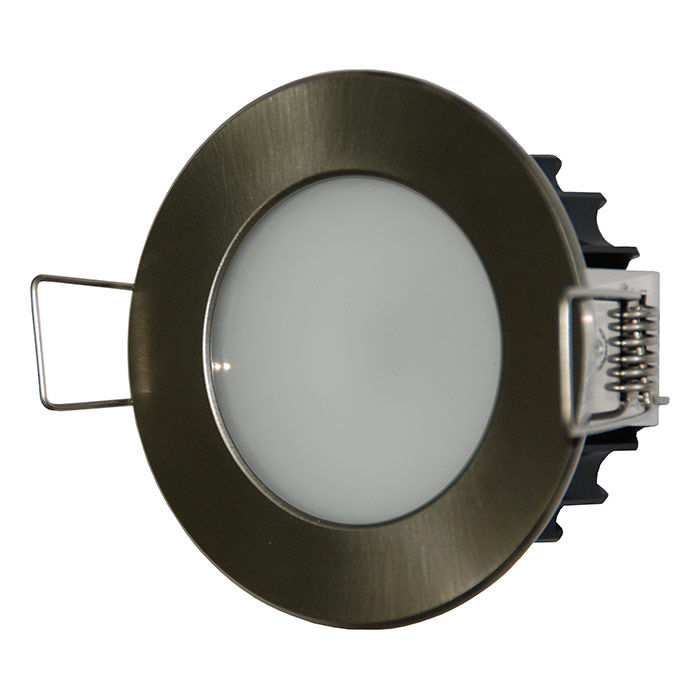

MSS Round, modern, satin stainless steel

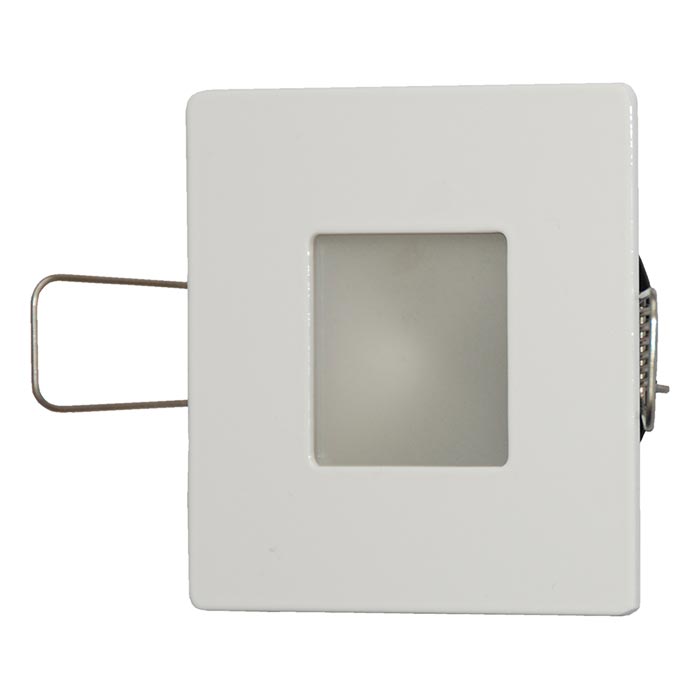

QMAW Square, modern, painted white aluminium
QMAB Square, modern, painted beige aluminium
QMSP Square, modern, polished stainless steel
QMSG Square, modern, polished gold (PVD) stainless steel
QMSS Square, modern, satin stainless steel
Color of lighting
LRM0115 – LRM0220
Description
W Warm White
D Daylight White
R Red
G Green
B Blue
Color of lighting
LRM0620
Description
M RGB multi-color

Technical Specifications

Power supply 12–24 Vdc, max. 250 mA/12Vdc or max. 125 mA/24Vdc (1 LED)
12–24 Vdc, max. 400 mA/12Vdc or max. 200 mA/24Vdc (2 LEDs)
12–24 Vdc, max. 650 mA/12Vdc or max. 350 mA/24Vdc (6 LEDs)
Lens angle 130° (1 LED, 2 LEDs)
120° (6 LEDs)
Optical window High grade polycarbonate glass
Luminous flux max. 270 lm (1 LED)
max. 450 lm (2 LEDs)
max. 550 lm (6LEDs)
White color temperature 4500K (daylight) or 3000K (warm)
Casing Black anodized aluminium
Dimensions Ø79 x 26mm (C) or Ø79 x 23mm (M) (1 LED, 2 LEDs)
Ø79 x 37mm (C) or Ø79 x 34mm (M) (6 LEDs)
Mounting hole Ф68mm
Weight Aluminium front shape 145g (C) or 125g (M)
Stainless steel front shape 225g (C) or 160g (M)
