Project Description

INTENSA LRM0230 – LRM0340 – LRM0380 – LRM0625

  • Anodized Aluminium Casing
  • 2, 3 or 6 High-Power LEDs

  • Different Face Shapes

  • Warm White, Daylight White, Blue, Green, Red or Multi-Color Lighting
  • Reflecor with Holographic Diffuser
  • Microprocessor Control

  • Digital Dimming
  • DMX512 Network Control
  • Polarity Protection

  • Transient Protection

  • Thermal Protection
  • Wide Range Power Supply
  • Low Power Consumption

  • Simple Installation

The INTENSA series of compact LED lights with electronic driver built-in waterproof anodized aluminium casing is designed by using of 1, 2, 3 or 6 high-power LEDs with built-in microprocessor which enables network connections and remote control with digital dimming.

The multi-color RGBW compact LED lights with built-in driver are designed to offer the best illumination quality of different white lighting (CRI 97) and microprocessor-controlled changing of white and all other colors of lighting manually or automatically through the complete rainbow spectrum.

Due to wide range of prestige massive face shapes made of aluminium or stainless steel the INTENSA is suitable to fit on luxury designed interiors and exteriors. The most advanced LED technology enables extremely low power consumption and very long lifetime with high-performance lighting.

Model Description
LRM0230 2 High-Power LED
LRM0340 3 High-Power LEDs
LRM0380 3 High-Intensity LEDs
LRM0625 6 High-Power LEDs
Control Description
I Internal dimming control, 2-wire system
E External dimming control, 3-wire system
Front shape Description

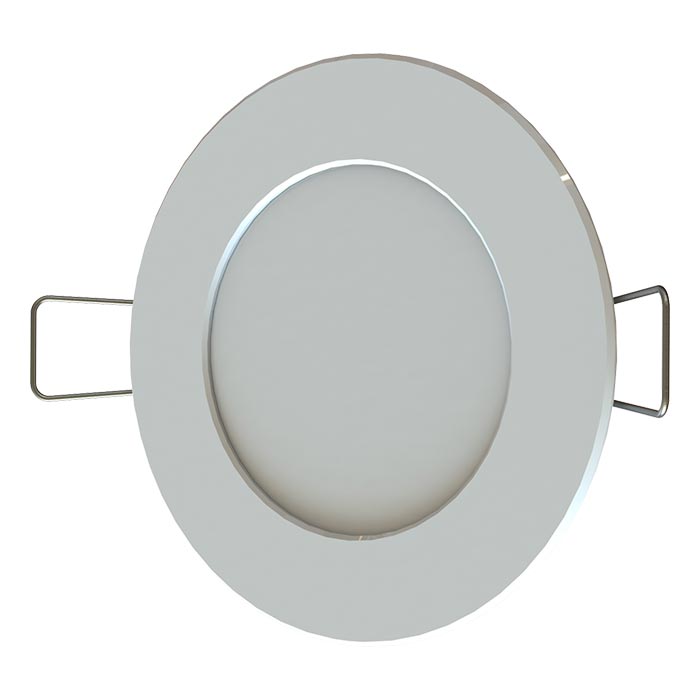

MAW Round, modern, painted white aluminium
MAB Round, modern, painted beige aluminium
MSP Round, modern, polished stainless steel

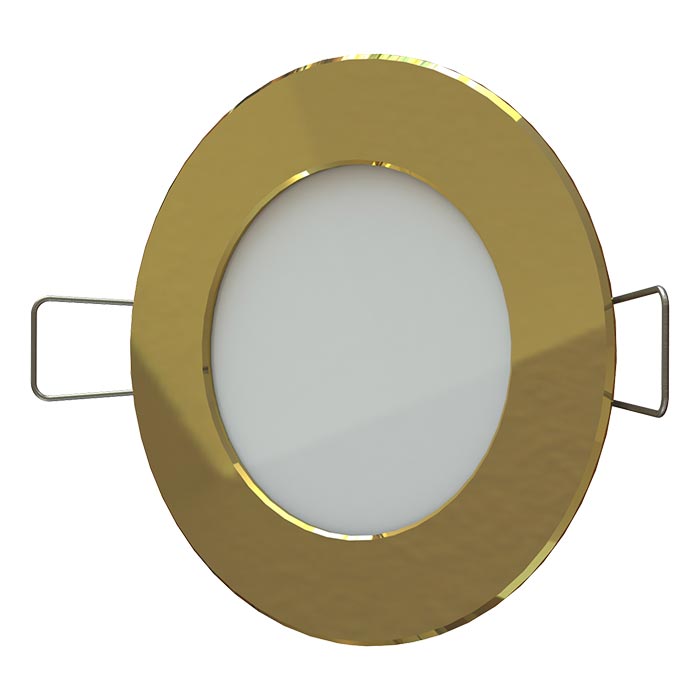

MSG Round, modern, polished gold (PVD) stainless steel
MSS Round, modern, satin stainless steel

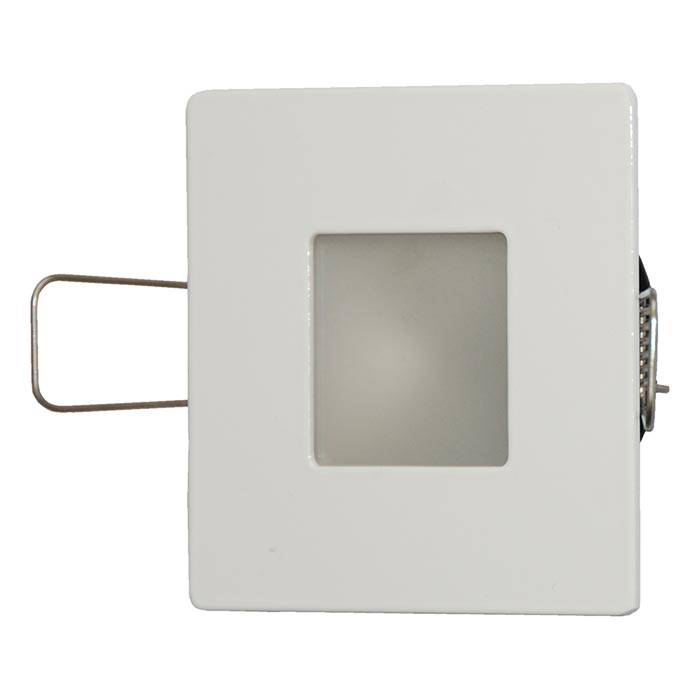

QMAW Square, modern, painted white aluminium
QMAB Square, modern, painted beige aluminium
QMSP Square, modern, polished stainless steel
QMSG Square, modern, polished gold (PVD) stainless steel
QMSS Square, modern, satin stainless steel
Color of lighting
LRM0230 – LRM0340
Description
W Warm White
D Daylight White
R Red
G Green
B Blue
Color of lighting
LRM0380
Description
W Warm White
D Daylight White
Color of lighting
LRM0625
Description
M RGB multi-color

Technical Specifications

Power supply 12–24 Vdc, max. 500 mA/12Vdc or max. 260 mA/24Vdc (2 LEDs)
12–24 Vdc, max. 800 mA/12Vdc or max. 420 mA/24Vdc (3 LEDs)
12–24 Vdc, max. 650 mA/12Vdc or max. 350 mA/24Vdc (6 LEDs)
Lens angle 130°
Optical window High grade polycarbonate glass
Luminous flux max. 530 lm (2 LEDs)
max. 800 lm (3 LEDs)
max. 1.300 lm (3 High-Intensity LEDs)
max. 550 lm (6LEDs)
White color temperature 4500K (daylight) or 3000K (warm) (2 LEDs, 3LEDs)
Adjustable, from 2500K to 7500K in 21 steps (6 LEDs)
Casing Black anodized aluminium
Dimensions Ø79 x 26mm (C) or Ø79 x 23mm (M) (1 LED, 2 LEDs)
Ø79 x 37mm (C) or Ø79 x 34mm (M) (6 LEDs)
Mounting hole Ф79mm
Weight Aluminium front shape 190g
Stainless steel front shape 250g
