METEOR XP LFR3210 / LFR3215 2017-10-18T22:23:25+00:00

Project Description

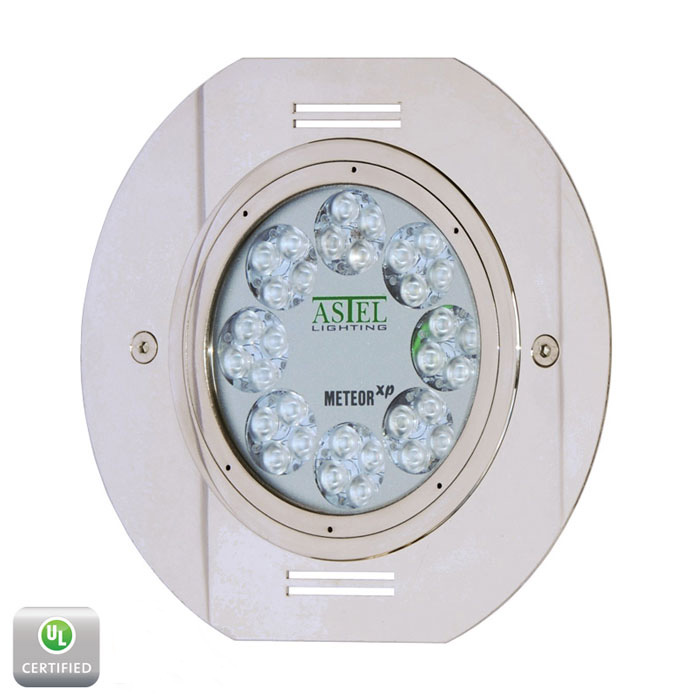

METEOR XP LFR3210 / LFR3215

  • Stainless Steel Casing

  • 32 Power LEDs Design

  • Cool White, Warm White, Blue, Green, Red, Multi-Color RGB and RGBW Lighting

  • High Grade Polycarbonate Glass Optical Window

  • Vacuum Metalized Reflector

  • Remote Control

  • Microprocessor Control (network)

  • Digital Dimming

  • Polarity Protection

  • Transient Protection

  • Thermal Protection

  • Low Power Consumption

  • Simple Installation

The METEOR XP series of the new and extremely powerful LED lights is basically designed for installation in large pools. The special designed niches allow standard installations in pools using different materials and finishes.

The multi-color versions of METEOR XP series allows changing the color of lighting manually or automatically through the complete rainbow spectrum. The most advanced electronic design with built-in microprocessor enables network connection and simple control of complete group of lights with dimming.

All the models are available in stainless steel casings. The lighting is available in white, blue, green, red or RGB and RGBW color versions.

Technical Specifications

Power supply 12–24 Vdc, max. 9,7 A/12 Vdc or 4.6 A/24 Vdc
Beam Angle 35° (standard)
Optical window Tempered glass 8 mm
Luminous flux max. 10.000/15.000 lm (cool white)
White color temperature 6.000K
Operating temperature -10°C – +50°C
Casing Stainless steel (SAE316L)
Protection IP 68
Dimensions Ф240 x 220 x 64 mm
Weight 4.3 kg

Color of lighting

W cool white
WW warm white
B blue
G green
R red
RGB RGB multi-color
RGBW RGBW multi-color

Beam angle

standard
D wide
N narrow

Installation
