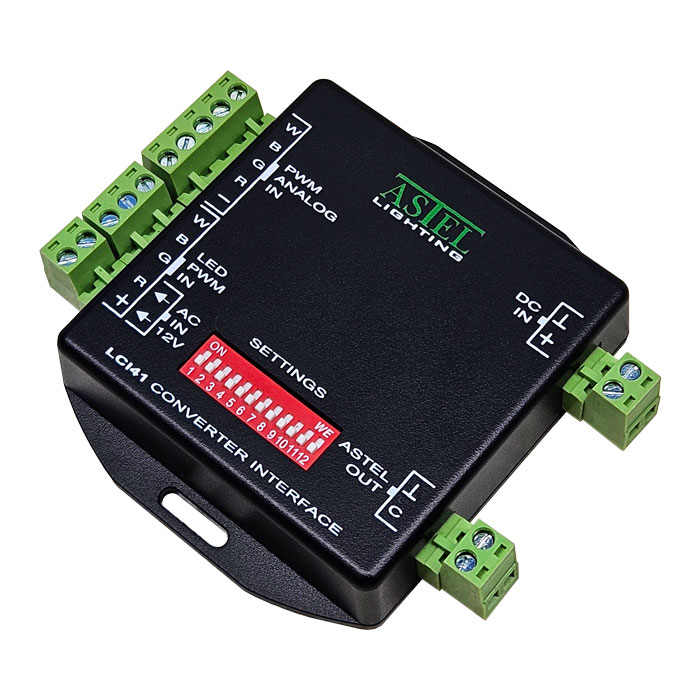

Converter Interface LCI41

  • 1 Control Output
  • Astel protocol
  • DIP-switch Programmable
  • J, P, H series light control compatibile
  • Opto-isolated interface
  • PWM light control
  • Analog light control
  • Common cathode ” + ” interface
  • Common anode ” – ” interface
  • Wide Range Power Supply

  • Low Power Consumption

  • Polarity Protection
  • Transient Protection
  • Short Circuit Output Protection

  • Simple Installation

TECHNICAL SPECIFICATIONS
DOWNLOADS

The LCI41 is J, P, H series light control, PWM light control and analog light control converter to ASTEL protocol with 1 output to control a group of RGB/RGBW multi-color lights with built-in ASTEL protocol.

Technical Specifications

Input voltage 12 – 24 Vdc
Consumption max. 100 mAdc
Operating temperature -10°C – +50°C / 14°F – +122°F
Casing ABS

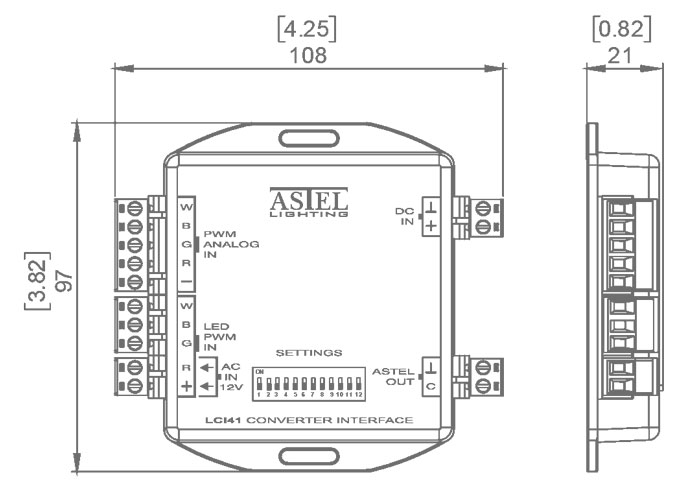

Dimensions max. 108x96x21mm / 4,25’’ x 3.82’’ x 0.82’’
Weight 0.1 kg / 0.2 lbs
