LUMA

  • Stainless Steel / Anodized Aluminium Casing

  • Different Face Finishes

  • 3 or 6 High-Power LEDs

  • Warm White, Daylight White, Blue, Green, Red or Multi-Color Lighting
  • Reflecor with Holographic Diffuser
  • Microprocessor Control
  • Digital Dimming
  • DMX512 Network Control
  • Polarity Protection

  • Transient Protection

  • Thermal Protection
  • Wide Range Power Supply
  • Low Power Consumption

  • Simple Installation

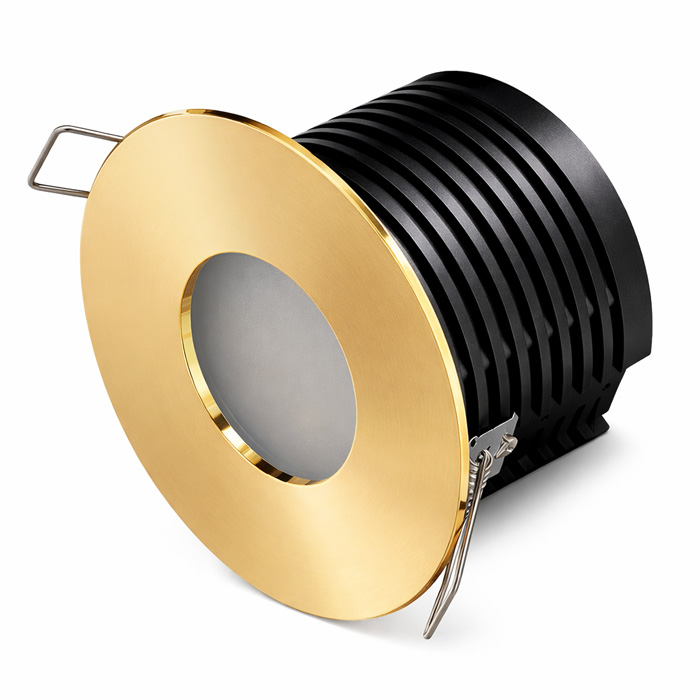

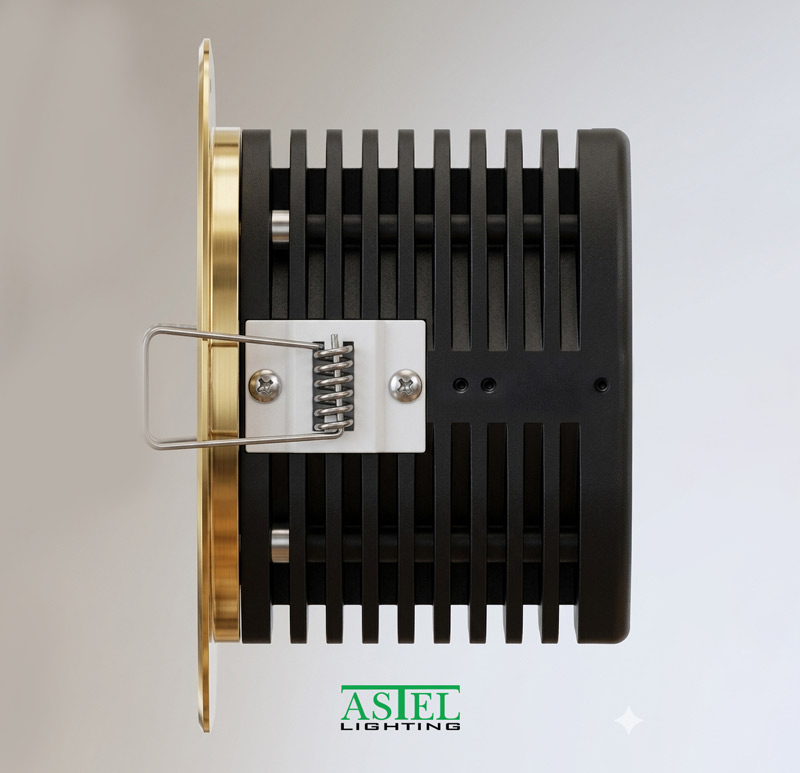

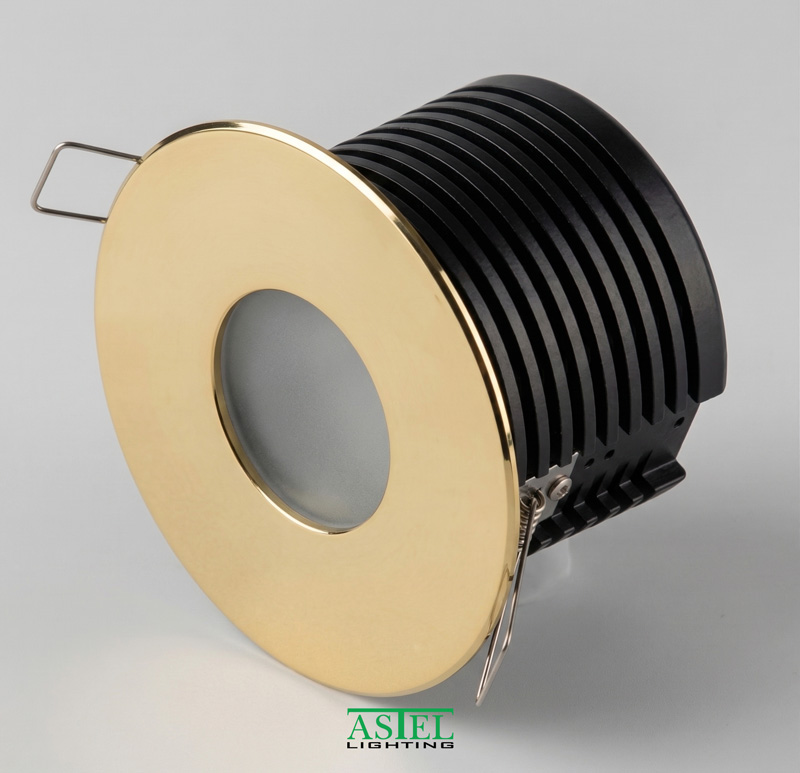

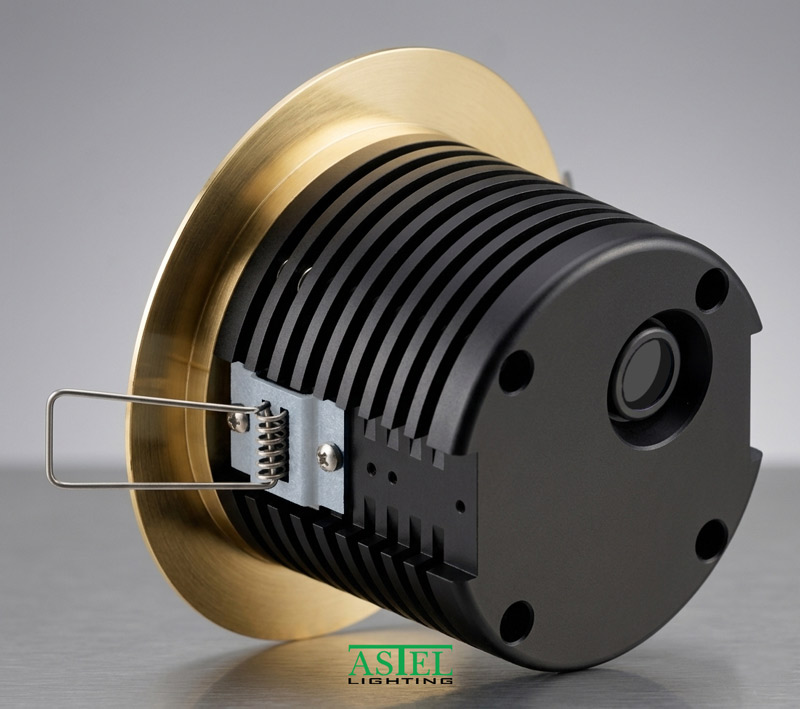

The LUMA series of compact high-temperature LED lights features a built-in electronic driver and is engineered for demanding sauna and steam room environments.
Designed with 3 or 6 high-power LEDs in a stainless steel / anodized aluminum casing capable of withstanding extreme heat and humidity.

The multi-color RGBW version is designed to deliver superior illumination quality of different white lighting and microprocessor-controlled changing of colors manually or automatically through the complete rainbow spectrum.

Range of prestige face finishes made of stainless steel and optionally PVD coated make the LUMA series suitable to fit on any luxury designed wellness environments.
The most advanced LED technology enables extremely low power consumption and very long lifetime with high-performance lighting.

Model Description
LRM0330 3 High-Power LEDs (single-color)
LRM0630 6 High-Power LEDs (multi-color)
Front shape Description
PS polished stainless steel
PG polished gold (PVD) stainless steel
SS satin stainless steel
SG satin gold (PVD) stainless steel
Color of lighting Description
W Warm White
D Daylight White
R Red
G Green
B Blue
M RGBW multi-color

Technical Specifications

Power supply 12 – 24 Vdc, max. 550 mA
Lens angle 120°
Optical window High grade polycarbonate glass
Operating temperature -10°C – +100°C (front)
-10°C – +70°C (rear)
Luminous flux max. 660 lm
White color temperature 4500K (daylight) or 3000K (warm)
Casing Stainless Steel / Anodized Aluminium

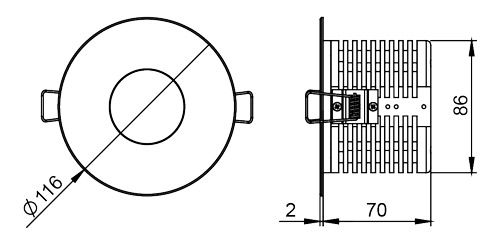

Dimensions max. Ф116mm x 73mm
Mounting hole Ф86mm x 70mm
Weight max. 1100g
Protection IP 66
