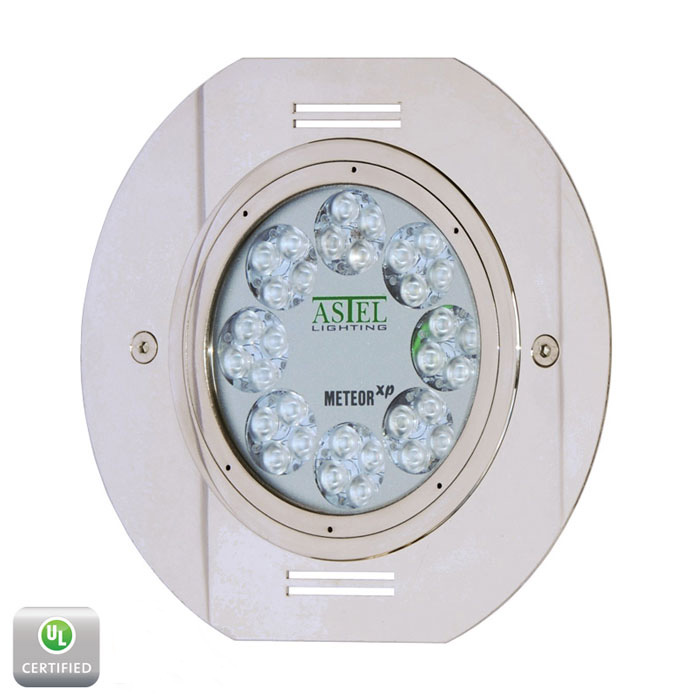

METEOR XP LFR3210
The METEOR XP series of extremely-powerful LED lights is designed for installation in large pools. The compact, flush-mount housing simplifies installation in stainless steel, concrete, and liner / concrete pools using compatible niches.
The special connector assembly allows quick and straightforward maintenance or replacement during servicing.
Advanced electronics with an integrated microprocessor enable network connectivity and coordinated control of multiple lights, with support for the DMX512 control protocol.
Delivering up to 15,000 lumens (LFR3215), METEOR XP provides powerful illumination for large pools. Precision optics and a choice of beam angles allow tailored light distribution, from focused illumination to broad coverage.
All the models are available in stainless steel casing. The lighting is available in single or multi color versions.
Technical Specifications
| Power supply | 12–24 Vdc, max. 10.6 A/12 Vdc or 4.8 A/24 Vdc |
| Beam Angle | 30° (standard), 85° (wide), 15° (narrow) |
| Optical window | Tempered glass 8 mm |
| Luminous flux | max. 10.000 lm (cool white) |
| Operating temperature | -10°C – +50°C 14°F – 122°F |
| Casing | Stainless steel (SAE316L) |
| Protection | IP 68 |
| Dimensions | Ф240 x 220 x 64 mm Ф9.45 x 8.66 x 2.52 inch |
| Weight | 4.3 kg 9.48 lbs |
Color of lighting
| W |  |
cool white |
| WW |  |
warm white |
| B |  |
blue |
| G |  |
green |
| R |  |
red |
| MW |  |
RGBW multi-color |
Installation
Accessories
