QUASAR LSR12120

Low-Profile Thermally Treated Glass Casing
12 Power LEDs Design
Cool White, Warm White, Blue, Green, RGB, WGB or RGBW Lighting
Low Voltage DC Power Supply
Vacuum Metalized Reflector
DMX512 Control
Polarity Protection
Transient Protection
Thermal Protection
Low Power Consumption
Simple Installation

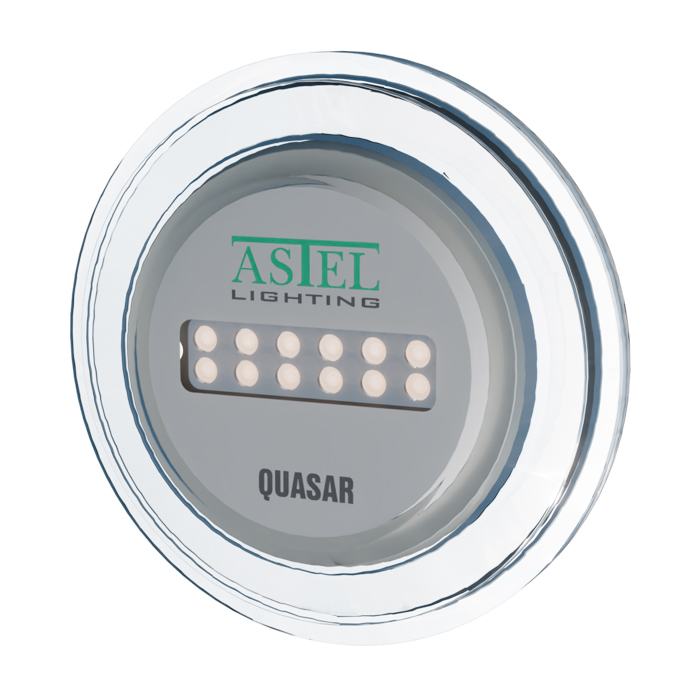

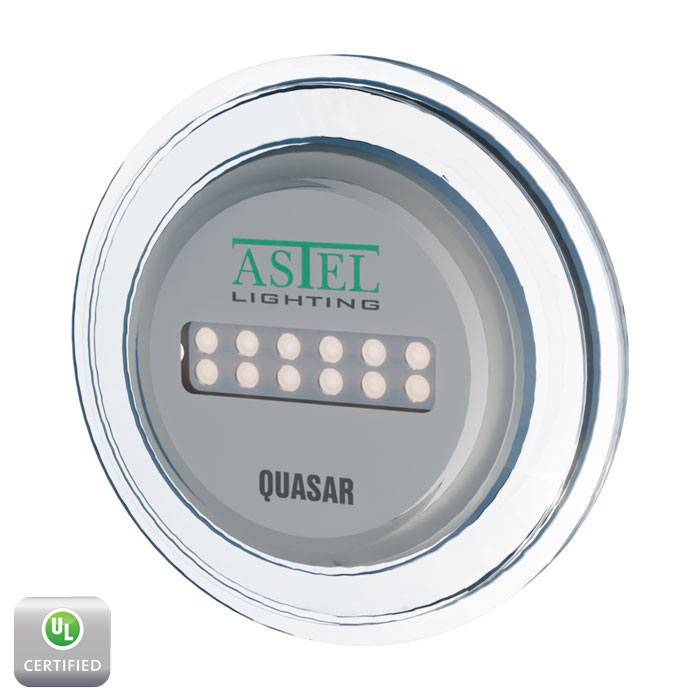

The QUASAR, a compact surface-mount low-profile underwater pool LED light with built-in driver is designed to use the latest LED lighting technology with consideration of the maximum extent from sustainable materials.

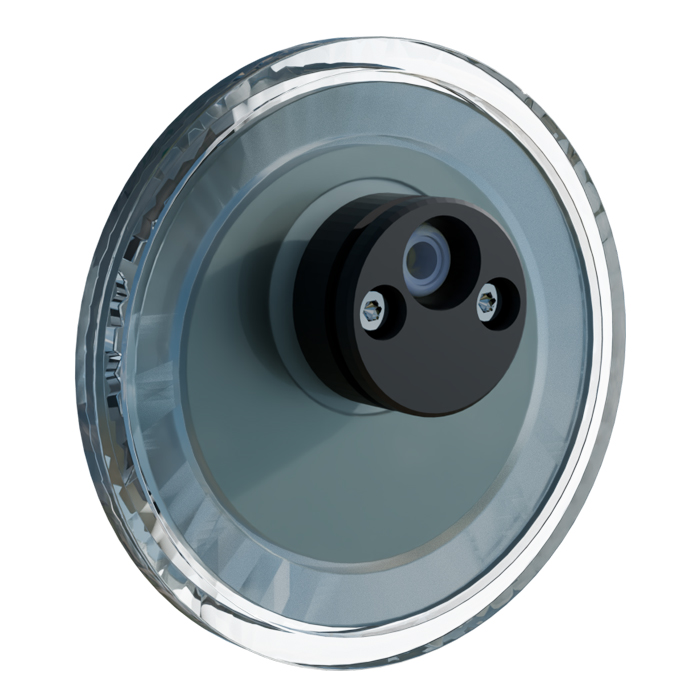

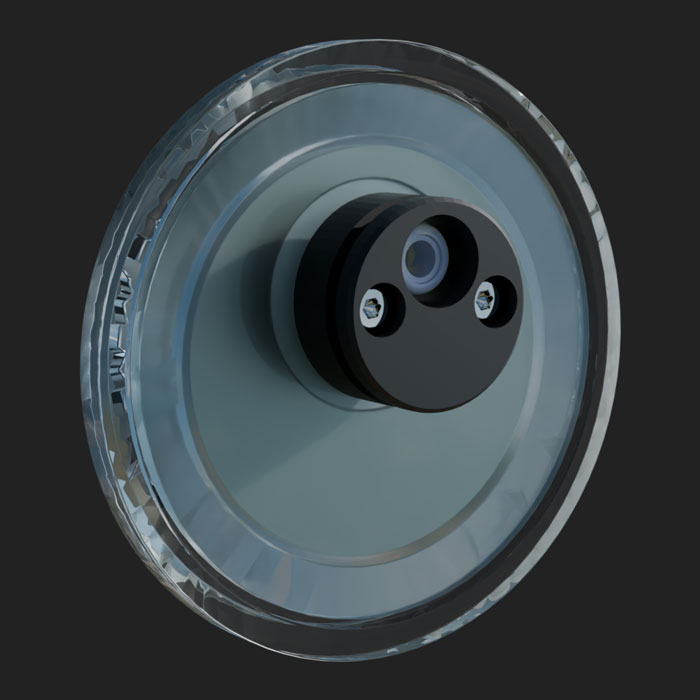

The casing is entirely made of thermally treated glass but at the same time is ensured to be easily installed without using of external metal parts.

Double click for full screen

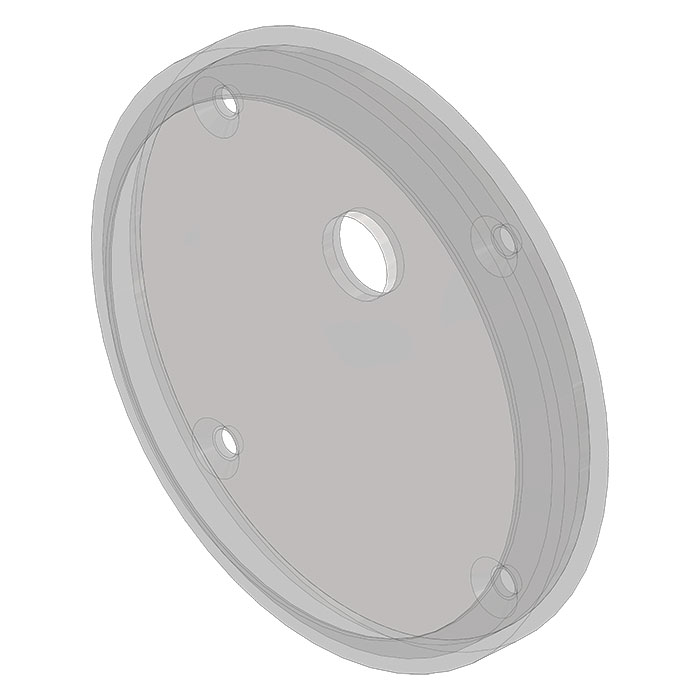

Beside the direct surface-mount installation the casing is easy adaptable for
installation to different adapters for flush-mount installations and different pool finishes. The design ensures excellent waterproofing as well as optimal lighting properties.

The single-color or multi-color versions allow changing the color of lighting through the complete color spectrum by using of optional DMX512 controllers and simple control of complete group of lights with dimming.

Technical Specifications

Power supply	12–24 Vdc, max. 1.2 A/12 Vdc or 550 mA/24 Vdc
Beam Angle	60° (standard) or 100° (wide)
Luminous flux	max. 1.900 lm (cool white)
Operating temperature	-10°C – +50°C 14°F – 122°F
Casing	Thermally treated glass
Protection	IP 68

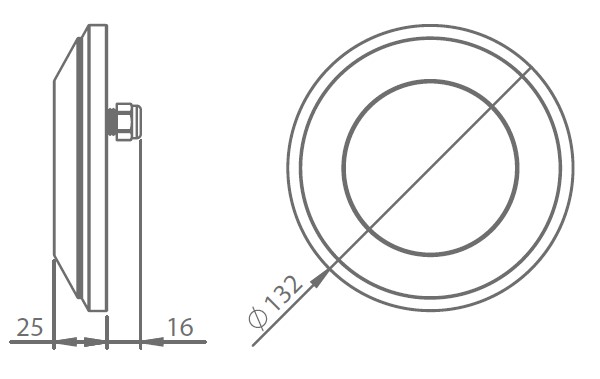

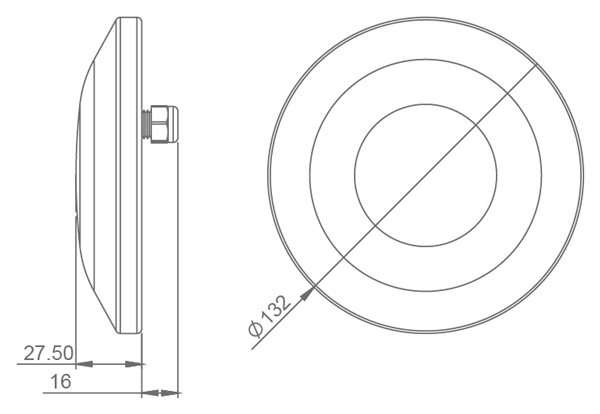

Dimensions	Ф132 x 25 mm Ф5.20 x 0.98 inch
Weight	0.7 kg 1.54 lbs
